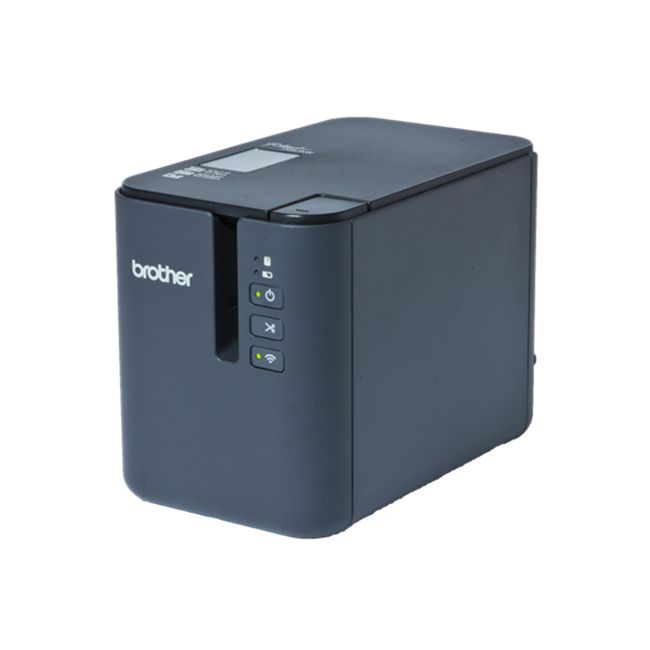

Brother PT-P950NW Wireless Powered Network Laminated Label Printer, print up to 36mm, 360 dpi
- 360dpi print resolution
- support up to 36mm label size
- Automatic Dual Blade Cutting Mechanism
- Wi-Fi, Ethernet, USB
- Uses HGe/TZe/HSe Tape
CA$649.99
Availability:
Out of stock
SKU
PTP950NW
The PT-P950NW is a complete wireless on-demand network laminating label printing solution. It comes fully equipped with printer, accessories, label design and print software, and a full length UL certified tape! This small footprint printer produces wide, premium quality laminated labels at 360dpi print resolution, up to 32mm print height on 36mm tape. It features a built-in automatic cutter that trims a continuous "tape" to virtually any length, one at a time or as a strip of pre-cut labels. And did you know Brother laminated labels can withstand abrasion, fading, extreme temperatures, chemicals and moisture?
Features
- Produce Premium Quality, UL Certified¹ Laminated Labels On-Demand - Virtually Eliminates the Need to Purchase Pre-Printed Labels From a Converter for Custom and Short Run Labels
- Wi-Fi, Ethernet, USB, Host USB, Serial & Optional Bluetooth (PA-BI-002) Interfaces - Versatile Wireless and Wired Connectivity Options
- Infrastructure, Adhoc and Direct Wireless Wi-Fi Communications - Connect Directly to a Windows Computer, iOS and Android Smartphone or Tablet
- Larger Print Head Prints up to 32mm High on 36mm Wide Tape at 360 dpi Printing Resolution - Prints Larger, Easy-to-Read Labels with Smooth Curves that Help Eliminate Jagged and Pixilated Images, Including Very Small Characters and Graphics
- Automatic Dual Blade Cutting Mechanism - Pre-Print Strip of Easy-to-Peel labels as an Alternative to Sheets and Rolls of Die-Cut Labels
- Many accessories are available to ensure your machine remains "future proof" and can be continually updated. Make printer configuration purchasing decisions based on current and future requirements.
- Printer Includes AC Adapter and Easy-to-Use, Advanced Label Design Software, UL Certified Tape and Cables - Comes With Everything you Need to Help you Design and Print Premium Quality Laminated Labels
- Prints Laminated Labels up to 3.1 ips - Print Speed is up to 4x Faster Than Other Brother Models and is Ideal for Work in Progress (WIP) and Higher Volume Labeling Applications
- Create custom templates and add data from linked sources. The addition of an optional barcode reader lets you create labels from scanned data—ideal for warehouse labelling
- Uses HGe/TZe/HSe Tape – All-in-One, Drop-in Cartridge Design Helps Ensure you Get the Best Print Quality and Makes Replacing Media Virtually Trouble Free
- Small Footprint, only 4.7" wide x 5.7" high x 7.6" deep - Ideal for Use on Crowded Bench Tops, Limited Work Space and Even on Carts
- 1-Year "At your side" Limited Warranty - Helps Assure Operational Confidence and Reliability, and Helps Minimize Down Time
| Model Type | Industrial Powered Network Label Printer |
| Tape Family | HGe, TZe, HSe, STe |
| Tape Sizes‡ | 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm, 36mm |
| Tape Length‡ | 8m (26.25') |
| Tape Technology | Laminated Thermal Transfer |
| Tape Types‡ | High Grade, Standard & Extra-Strength Adhesive, Flexible ID, Heat Shrink Tube, Tamper-Evident, Stencil, Iron-On Fabric, Acid Free, Non-Laminated |
| LCD Display | Optional Touch Panel Display (PA-TDU-003) |
| Backlight | Optional Touch Panel & Display (PA-TDU-003) |
| Maximum Print Resolution | 360 x 720 dpi (14 x 28 dots/mm) |
| Maximum Print Speed | HGe/TZe Tape: Up to 3.15 ips (80 mm/sec) |
| Keyboard | Optional Touch Panel Display (PA-TDU-003) |
| Cutter | Automatic (Built-In) Cutter: Full-Cut mode and Crack and Peel mode |
| Batteries | Optional Li-ion Rechargeable Battery (PA-BT-4000LI), Requires Optional Battery Base (PA-BB-002) |
| Operation Mode | Computer Connected (GDI Printer, Template), Connected to Host Peripheral (USB or Serial) |
| Printer Emulation | Raster, ESC P, Text (Template/Form Mode) |
| Control Panel | On/Off, Feed/Cut, Wi-Fi On/Off |
| Power Switch | Digital |
| Power Supply | 120-240VAC 60/50 Hz |
| AC Adapter | AD-9100ESA (Included) |
| Handle | None |
| Interface | Wi-Fi WLAN (802.11b/g/n), LAN (10/100 Base-TX), USB 2.0, Host USB, Serial (RS-232C), Optional Bluetooth v2.1 (PA-BI-002) |
| Microsoft Word/Outlook/Excel Add-ins | Office 2000/2003/2007 |
| Font Styles | Resident: Helsinki, Letter Gothic; P-touch Editor Software: Brother & Compatible TrueType Fonts |
| Point Sizes | Scalable Fonts |
| Built-in Symbols | None |
| Types of Styles | Regular, Bold, Shadow, Outline, Horizontal Lines, Surround, Invert |
| Max. Print Height | 1.26" (32 mm) |
| Multi-Block | Yes |
| Label Length Setting | 0.16" - 39.37" (4.06mm - 999.99mm) |
| Auto Incrementation | Alpha Numeric |
| Auto Numbering | Alpha Numeric |
| Horizontal Alignment | Left, Center, Right Justification |
| Vertical Printing | Yes |
| Mirror Printing | Yes |
| Rotate Printing | Yes |
| Text Insert | Yes |
| Text Framing/Fill Pattern | Yes |
| Multi-copy Print | Up to 5,000 Copies |
| Memory | 6 MB |
| Memory for Transferred Data (Number) | Up to 99 Template Files |
| Favorites Function Key | Optional Touch Panel & Display (PA-TDU-003) |
| Date/Time Stamp | Yes |
| Snapper function | Yes |
| Download data to unit | Yes |
| Built-in Designs/Templates | Downloadable |
| Auto Formats | Yes |
| Database Printing | Yes |
| Database File Compatibility | *.accdb, *.mdb, *.xlsx, *.xlsm, *.xls, *.csv, *.txt, and Microsoft MSDE/SQL Server |
| Internal Fonts | ESC P: Helsinki, Letter Gothic Template (Bitmap & Outline): Helsinki, Brussels, Letter Gothic |
| Internal Font Sizes | ESC P: 21, 28, 44, 56, 88, 120 dots Template (Bitmap): 21, 28 dots Template (Outline): 35 - 380 dots (20 sizes) |
| Internal Font Styles | ESC P: Bold, Italic, Underline Template: Bold, Italic, Vertical, Outline, Shadow, Outline/Shadow |
| Barcoding | Yes |
| Barcodes (Stand-alone mode) | Linear: Code39, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 [UCC/EAN-128], Codabar (NW-7); 2D: PDF417/Micro PDF417, Data Matrix, Maxicode, QR Code/Micro QR Code |
| Barcodes (connected to computer) | P-touch Editor Software - Linear: Code39, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128 (UCC/EAN-128), Codabar (NW-7), ISBN-2/5, POSTNET, Laser, GS1 DataBar (RSS); 2D: PDF417, QR/Micro QR Code, Data Matrix, MaxiCode, GS-1 Composite, AztecCodeC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS) 2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode |
| (PC) Connectivity | Wi-Fi WLAN (802.11b/g/n), LAN (10/100 Base-TX), USB 2.0, Optional Bluetooth v2.1 (PA-BI-002) |
| (Mac) Connectivity | Wi-Fi WLAN (802.11b/g/n), LAN (10/100 Base-TX), USB 2.0 |
| Operating System | Windows Server 2012 R2/2012/2008 R2/2008; Windows 10/8/7 (32/64bit), Windows Vista (32/64bit) Mac OS X 10.10x - 10.8x, iOS 3.0 or Later, Android 1.6 or Later |
| (PC) Available hard disk space | 50 MB |
| (Mac) Available hard disk space | 50 MB |
| (PC) Minimum RAM memory | 512 MB |
| (Mac) Minimum RAM memory | 128 MB |
| Included Items | One 0.94" (24mm) x 26.2' (8m) Black on White Extra-Strength Adhesive Laminated "TZe" Tape (TZeS251), USB interface cable, P-touch Editor software and printer drivers (Online), AC Adapter/Power Cord, Quick Start Guide |
| Unit Dimensions (cm; W x D x H) | 4.7" (119.4mm) x 7.6" (193mm) x 5.7" (144.8mm) |
| Unit Weight (Kg) | 3.3 lbs (1.5 kg) |
| Housing Colour | Black |
| Warranty | 1 year limited exchange express warranty |
| UPC Code | 012502642992 |
| Product Type | Printer |
|---|---|
| Warranty | 1-Year "At your side" Limited Warranty |
